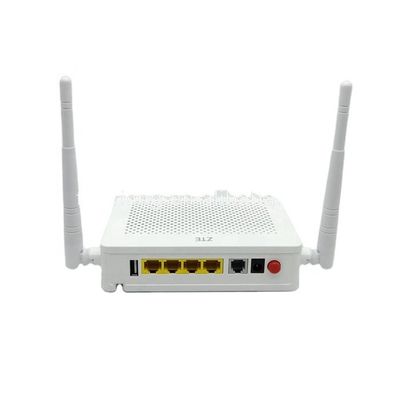

Name: FTTH F663NV3A ZTE GPON ONU
Brand: HONGKING
SKU: F663NV3A
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (171 reviews)

Detail Information
Type:	FTTx Solutions	No. Of Fiber:	1.
Use:	FTTH	Model:	ZTE ZXHN F663NV3A
Dimensions (H X W X D):	175x136 X 28mm	Weight:	175g / 340g (Include Package)
Operating Temperature:	0°C To 40°C	System Power Supply:	11 V To 14 V DC, 1 A
Ports:	1GE+3FE+1TEL+USB+WiFi	Optical Connector:	SC / APC
Indicators:	Power/PON/LOS/internet/wifi/LAN/USB	Port:	Shenzhen
High Light:	340g F663NV3A ZTE GPON ONU , 340g ZTE GPON ONU , FTTH zte f663nv3a

Product Description

GPON ONU ONT WiFi F663N FTTH F663NV3A 1GE 3FE USB VOIP USB Triple Play Service Optical Network Terminal

ZTE GPON ONU F663N V3A 5dBi WiFi 1GE+3FE+1TEL+USB

Brief Introduction:

ZTE F663N is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F663N provides an GPON interface to connect OLT with an ODN. It offers anew choice for operators to deliver FTTH access.

Proudcts Specification :

Model	ZTE F663N
Dimensions (H x W x D)	175x136 x 28mm
Weight	175g / 340g (Include Package)
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1 A
Ports	1GE+3FE+1TEL+1USB+Wi-Fi
Optical Connector	SC / APC
Indicators	Power/PON/LOS/internet/wifi/LAN/USB

Products Features:

* Supported service: VoIP, Internet, IPTV
* GPON: 8 T-CONTs, 32 GEM Ports
* VLAN: 802.1Q, 802.1P, 802.1ad
* MAC address table: 1K
* L3 function: DHCP server/Client, DNS Client, NAT
* IPv6: Dual Stack, DS-Lite
* VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38
* Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS
* Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise
* Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping
* Multicast group per user port: 256
* QoS: service flow classification , MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
* Management: local web management, OMCI, TR069
* Management: local web management, OMCI
* USB: DLNA DMS, USB backup, 3G/LTE dongle

About Us

Hongking Industrail co.,limited
HongKing Communication Technology (shenzhen)co.,Limited
is a company group which specilized in the research and development of fiber optical access network technology.
As a partner of HUAWEI / ZTE , We have great advantage on the region of PON and FTTB/FTTH.
We Provide Competitive fiber optic access solution for ISP Company and Government worldwide.

Our Main Products includes:
GPON EPON XPON ONU ONT (Optical network terminal)
OLT & Board & SFP & OLT Accessories (Optical Line Terminal)
FTTH FTTB Accessories (fiber to the home)

Our Services
1. Provide Technology support and Remote help for our customers
2. 1 year warranty for our product
3. OEM/ ODM service for your market

In the past 10years, we had provide our products and good service for more than 30 countrys with good reputation
Welcome to contact us for a good coopeation
We have confidence to be your reliable partner on the field of FTTX......

About Shipment

1. For samll orders, We suggest ship via DHL/ FedEx / TNT/etc. Your packages will be arrived about 5-7 days all over the world.
2. For big order, we can arrange Sea shipment or Air cargo for your order.
3. We can recommend you Special line logistics agent for some country, it will save you much shipping cost.
4. If you have own shipping agent, we will provide good cooperation for it.
