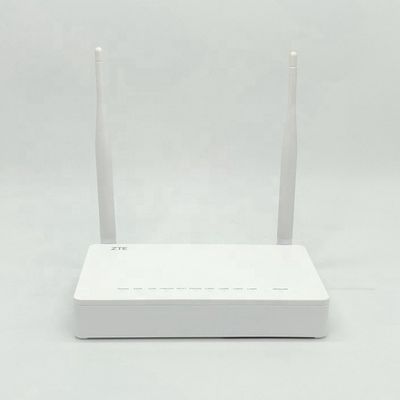

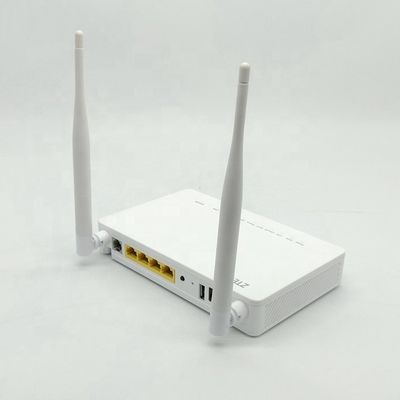

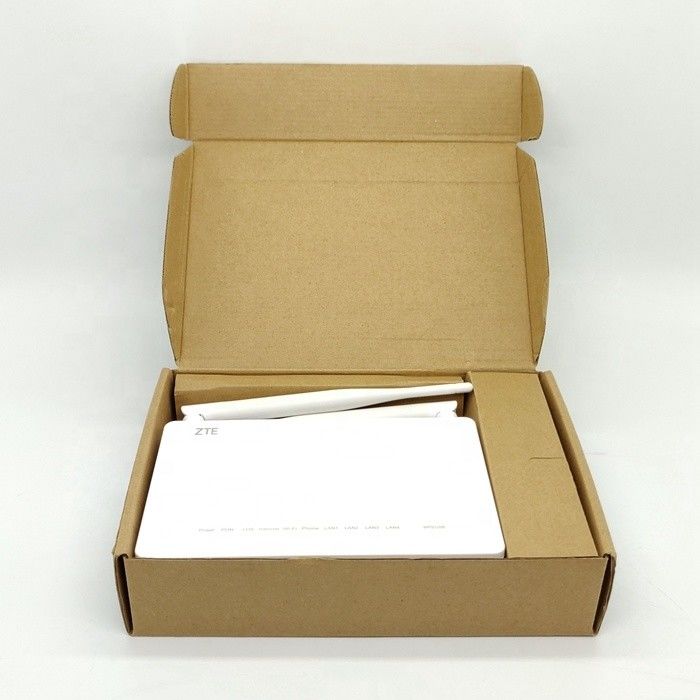

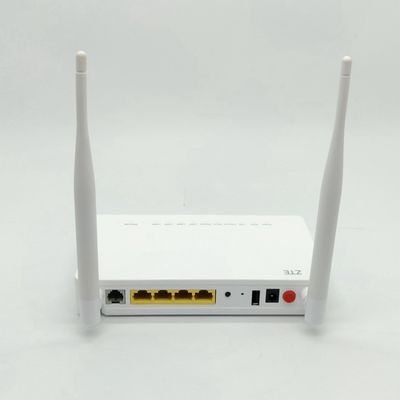

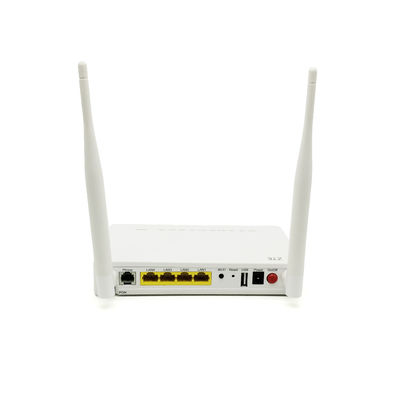

FTTH F660 V8 Optical Network Terminal

Product Details:
Place of Origin: China
Brand Name: HONGKING
Certification: CE ROHS Anatel
Model Number: F660 V8.0
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negociatable
Packaging Details: Carton Box
Delivery Time: 7-15days
Payment Terms: T/T,Western Union
Supply Ability: 10000pcs/Week

Detail Information

Type: FTTx Solutions No. Of Fiber: 1.
Use: FTTH Model: ZTE ZXHN F660 V8.0
Dimensions (H X W X D): 175x136 X 28mm Weight: 250g
Operating Temperature: 0°C To 40°C System Power Supply: 11 V To 14 V DC, 1 A
Ports: 1GE+3FE+1TEL+USB+WiFi Optical Connector: SC / APC
Indicators: Power/PON/LOS/internet/wifi/LAN/USB Port: Shenzhen
High Light:

28mm FTTH F660 V8.0 ONT




420g ZTE ZXHN F660 v8.0

Product Description

FTTH 1GE 3FE USB VOIP USB Triple Play Service Optical Network Terminal GPON ONU ONT WiFi F660 V8.0 V8
Brief Introductions:
F660 V8.0 GPON ONT is ZTE FTTH solutions in the high-end home gateway. UWB Access for home and Soho users using GPON technology.F660 V8.0 provides a phone port, a 1ge + 3fe adaptive Ethernet port, a USB port and a 2.4 g wi-fi. The F660 V8.0 has a highperformance forwarding capability to ensure superior delivery of VOIP, Internet and Wifi services.
Proudcts Specifications :
ZTE F660
Dimensions (H x W x D)
175x136 x 28mm
255g / 420g (Include Package)
Operating Temperature
0°C to 40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply
11 V to 14 V DC, 1 A
Optical Connector
Appearance overview :
FTTH F660 V8 Optical Network Terminal 0
