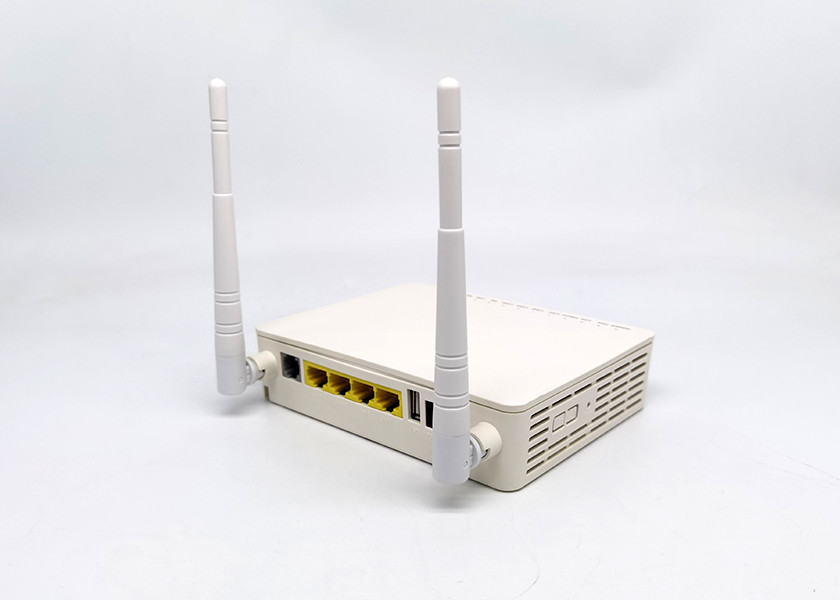

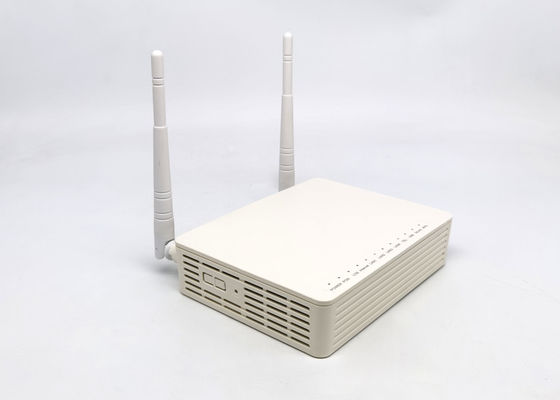

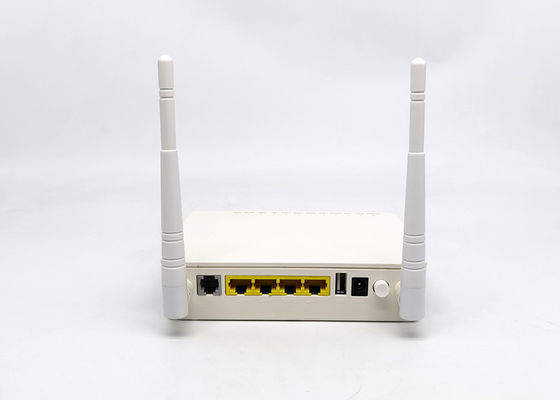

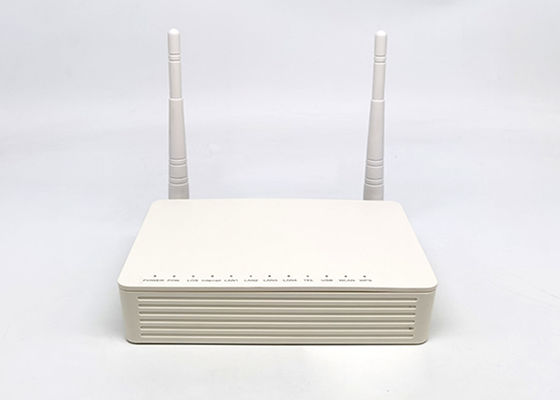

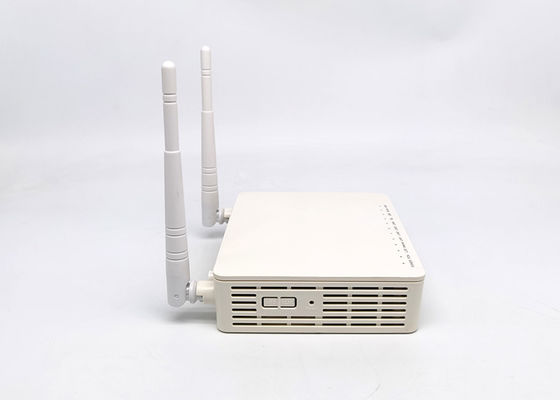

Hk719 Fiber Optical Network Terminal

Product Details:
Place of Origin: China
Brand Name: OEM / HONGKING
Certification: CE ROHS Anatel
Model Number: HK719 WiFi GPON ONT
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negociatable
Packaging Details: Carton box
Delivery Time: 7-15days
Payment Terms: T/T,Western Union
Supply Ability: 10000pcs/Week

Detail Information

Color: White Port: 1GE 3FE 1TEL 1USB
WiFi: 2.4G WiFi Pon Mode: GPON
OLT Compatible: With HUAWEI ZTE OLT & 95% OEM OLT
High Light:

Hk719 Fiber Optical Network Terminal


Fiber Optical Network Terminal Hk719



Product Description

        HK719 FTTH GPON ONT WiFi 1GE 3FE 1TEL


1. Overview

  • HK719 is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services.
  • HK719 is based on mature and stable, cost-effective XPON technology.
  • HK719 adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

2. Functional Feature

  • Support GPON mode and switch mode automatically
  • Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
  • Support IPv4 and IPv6 dual mode
  • Support 2.4G WIFI and Multiple SSID
  • Support LAN IP and DHCP Server configuration
  • Support Port Mapping and Loop-Detect
  • Support Firewall function and ACL function
  • Support IGMP Snooping/Proxy multicast feature
  • Support TR069 remote configuration and maintenance
  • Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item Details
PON Interface 1 GPON BOB (Bosa on Board)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
Design Scheme RTL9603C+RTL8192FR BOB(RTL8290B)
Chip Spec CPU 950MHz,DDR2 128MB
Flash SPI Nor Flash 16MB
LAN Interface 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
Push-Button 3,For Function of Reset, WLAN, WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg
